Reference a BPM Variable in a Message Box?

Kinetic ERP
1

So, if I create a var such as var_IUM how can I reference it (display it’s value) in a message box? I have tried this.var_IUM as well as {this.var_IUM} apparently I’m missing something or the message box widget doesn’t support this natively without other gyrations? Thanks!

2

this.PublishInfoMessage($“my variable {var_IUM}”, Ice.Common.BusinessObjectMessageType.Information, Ice.Bpm.InfoMessageDisplayMode.Grid, “PartEntry”, “Update-PreProcessing-TEST”);

This should work. Add this in custom code widget.
OR

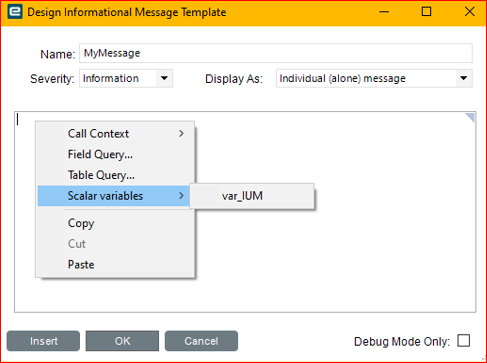

EDIT: Right click in message box widget and you will see your variable.


3 Likes
3

Outstanding, thank you so much!

1 Like
4

Don’t forget the short version:

InfoMessage.Publish($"Hello {myWorldVariable}");
3 Likes
5

Great to know! Will keep that in mind. Thank you :grinning:
