Add Fields to Epicor Custom Grid

[A.Baeisa (Al)]

compiled failed when removing Core, so i have added it back and added what you suggested as well ‘Epicor.ServiceModel’, i have added my custom lines, the whole code complied fine now, however :) my added field does not show any value

and this my code, (i am testing this code on Scheduling Resource Tracker Screen as i have manged to add the field but failed to bind it to Epicor DataBase)
// **************************************************
// Custom code for ResourceSchedForm
// Created: 27/09/2018 13:43:48
// **************************************************
using System;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Windows.Forms;
using Erp.Adapters;
using Erp.UI;
using Ice.Lib;
using Ice.Adapters;
using Ice.Lib.Customization;
using Ice.Lib.ExtendedProps;
using Ice.Lib.Framework;
using Ice.Lib.Searches;
using Ice.UI.FormFunctions;
using Ice.Contracts;
using Ice.Core;
using Ice.Proxy.Lib;

public class Script
{
// ** Wizard Insert Location - Do Not Remove ‘Begin/End Wizard Added Module Level Variables’ Comments! **
// Begin Wizard Added Module Level Variables **

// End Wizard Added Module Level Variables **

// Add Custom Module Level Variables Here **
Ice.Lib.Framework.EpiUltraGrid myGrid;
private BOReaderImpl _boReader;

public void InitializeCustomCode()
{
// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Variable Initialization' lines **
// Begin Wizard Added Variable Initialization
// End Wizard Added Variable Initialization
// Begin Wizard Added Custom Method Calls
// End Wizard Added Custom Method Calls

myGrid = (Ice.Lib.Framework.EpiUltraGrid)csm.GetNativeControlReference("87f88dc8-1b94-4324-ba83-583a2af5cbb9");
myGrid.DisplayLayout.Bands[0].Columns.Add("JobReleased", "Job Released");
myGrid.InitializeRow += new Infragistics.Win.UltraWinGrid.InitializeRowEventHandler(grdList_InitializeRow);
BOReaderImpl _boReader = WCFServiceSupport.CreateImpl<BOReaderImpl>((Ice.Core.Session)oTrans.Session, Epicor.ServiceModel.Channels.ImplBase<Ice.Contracts.BOReaderSvcContract>.UriPath);
}

private void grdList_InitializeRow(object sender, Infragistics.Win.UltraWinGrid.InitializeRowEventArgs e)
{
	if (!String.IsNullOrEmpty(e.Row.Cells["JobNum"].Value.ToString()))
	{
	EpiDataView edv = oTrans.Factory("JobHead");
	DataSet ds = _boReader.GetRows("JobHead","JobNum='" +e.Row.Cells["JobNum"].Value.ToString()+ "'","JobNum");
	if(ds.Tables[0].Rows.Count > 0 )
	e.Row.Cells["JobNum"].Value = ds.Tables[0].Rows[0]["JobNum"];
	}
}

public void DestroyCustomCode()
{
// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Object Disposal' lines **
// Begin Wizard Added Object Disposal
// End Wizard Added Object Disposal
// Begin Custom Code Disposal
// End Custom Code Disposal
myGrid.InitializeRow -= new Infragistics.Win.UltraWinGrid.InitializeRowEventHandler(grdList_InitializeRow);
_boReader = null;
}

}

[danbedwards (Dan Edwards)]

I assumed some of the code was good and just got it to compile. I can take another look to make sure it is functional

[A.Baeisa (Al)]

@A.Baeisa

failed to bind it to Epicor DataBase

really appreciate your help Dan, i will add your name to ‘Epicor Gods List’ :)

[A.Baeisa (Al)]

@A.Baeisa

if (!String.IsNullOrEmpty(e.Row.Cells[“JobNum”].Value.ToString())) { EpiDataView edv = oTrans.Factory(“JobHead”); DataSet ds = _boReader.GetRows(“JobHead”,“JobNum='” +e.Row.Cells[“JobNum”].Value.ToString()+ “'”,“JobNum”); if(ds.Tables[0].Rows.Count > 0 ) e.Row.Cells[“JobNum”].Value = ds.Tables[0].Rows[0][“JobNum”]; }

i finish today for a week holiday, but i think this is the bit that i need to correct to bind my field to The Database, i will post my results once i succeed.

thank you very much Dan, have a nice weekend

[askulte (Andris Skulte)]

Good stuff, guys! It’s over my head right now, but I’ll be using this as an example to follow to add the JobReleased column to the Multi Resource Scheduling Board.

[danbedwards (Dan Edwards)]

Here is the updated code that will work. You could probably use GetList or GetRows for this. GetList would get you some better performance.

// **************************************************
// Custom code for ResourceSchedForm
// Created: 9/28/2018 8:47:46 AM
// **************************************************
using System;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Windows.Forms;
using Erp.Adapters;
using Erp.UI;
using Ice.Lib;
using Ice.Adapters;
using Ice.Lib.Customization;
using Ice.Lib.ExtendedProps;
using Ice.Lib.Framework;
using Ice.Lib.Searches;
using Ice.UI.FormFunctions;
using Ice.Proxy.Lib;
using Ice.Core;
using Erp.BO;
using Ice.BO;

public class Script
{
	// ** Wizard Insert Location - Do Not Remove 'Begin/End Wizard Added Module Level Variables' Comments! **
	// Begin Wizard Added Module Level Variables **

	// End Wizard Added Module Level Variables **

	// Add Custom Module Level Variables Here **
	EpiUltraGrid myGrid;
	BOReaderImpl _boReader;

	public void InitializeCustomCode()
	{
		// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Variable Initialization' lines **
		// Begin Wizard Added Variable Initialization

		// End Wizard Added Variable Initialization

		// Begin Wizard Added Custom Method Calls

		// End Wizard Added Custom Method Calls
		myGrid = (EpiUltraGrid)csm.GetNativeControlReference("87f88dc8-1b94-4324-ba83-583a2af5cbb9");
		myGrid.DisplayLayout.Bands[0].Columns.Add("JobReleased","Job Released");
		myGrid.InitializeRow += new Infragistics.Win.UltraWinGrid.InitializeRowEventHandler(grdMatLst_InitializeRow);
		_boReader = WCFServiceSupport.CreateImpl<BOReaderImpl>((Ice.Core.Session)oTrans.Session, Epicor.ServiceModel.Channels.ImplBase<Ice.Contracts.BOReaderSvcContract>.UriPath);
	}

	private void grdMatLst_InitializeRow(object sender, Infragistics.Win.UltraWinGrid.InitializeRowEventArgs e)
	{
		if(!String.IsNullOrEmpty(e.Row.Cells["JobNum"].Value.ToString()))
		{
			DataSet ds = _boReader.GetRows("Erp:BO:JobEntry","JobNum = '" + e.Row.Cells["JobNum"].Value.ToString() + "'","JobReleased");
			if(ds.Tables[0].Rows.Count > 0 )
			{
				e.Row.Cells["JobReleased"].Value = ds.Tables[0].Rows[0]["JobReleased"].ToString();
			}
		}
	}

	public void DestroyCustomCode()
	{
		// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Object Disposal' lines **
		// Begin Wizard Added Object Disposal

		// End Wizard Added Object Disposal

		// Begin Custom Code Disposal

		// End Custom Code Disposal
	}
}

[ckrusen (Calvin Krusen)]

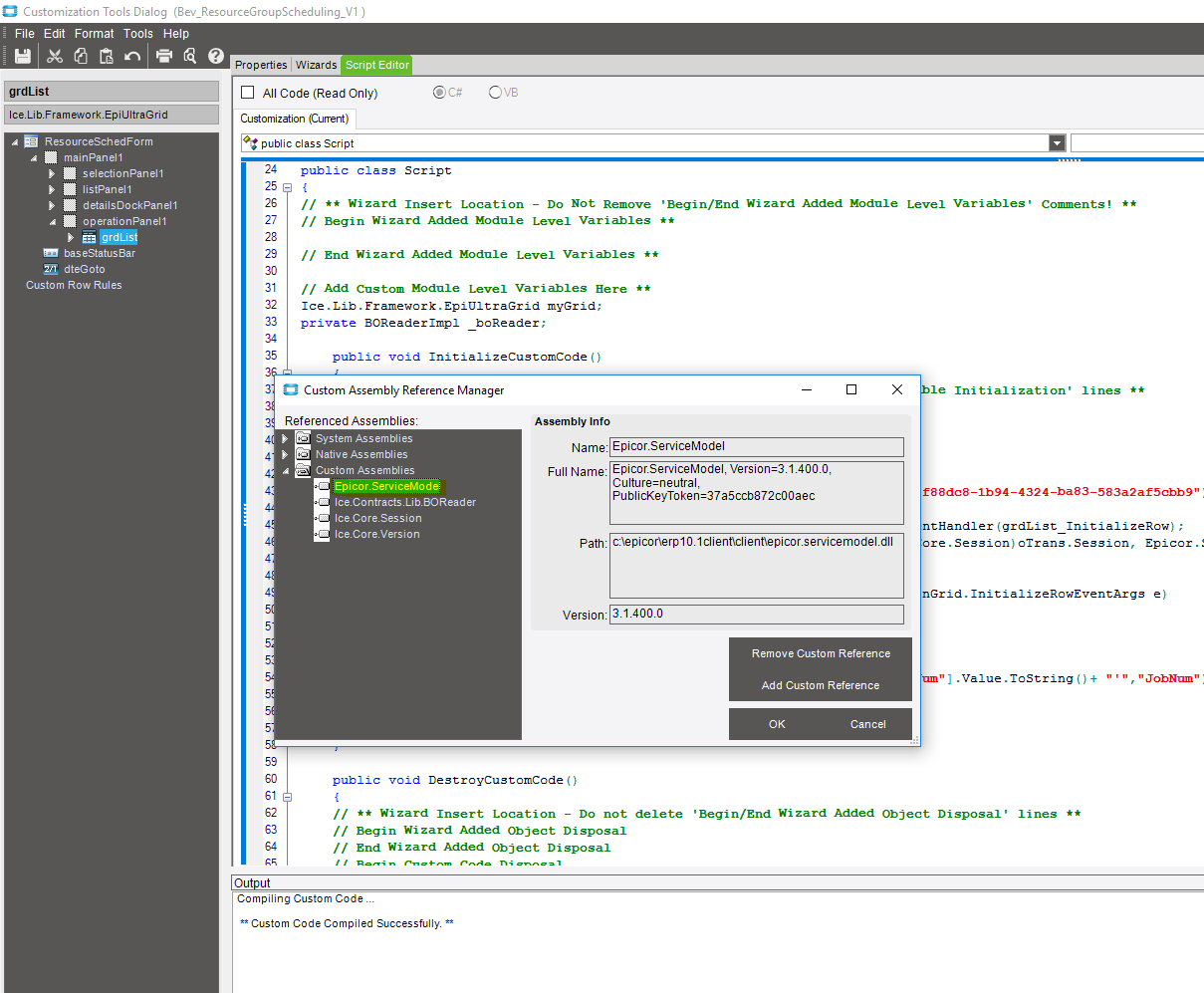

@A.Baeisa - the path for the custom Assy reference should be to the file location on the server. Is E10 installed on the C drive of App Server?

Are you doing this development on client. If so, that path starting at C: probably isn’t the same as is on the app server.

[danbedwards (Dan Edwards)]

@ckrusen

the path for the custom Assy reference should be to the file location on the server

This should not be the case.

He was not having a reference location problem - but more an issue of not having the right references. The client handles bringing in the assemblies from the proper location, unless you choose to go browse elsewhere which will not work. The path, once added, is smart enough to show whether it initially came from an E:\EpicorClient or now needs C:\EpicorClient

[A.Baeisa (Al)]

@danbedwards

using System; using System.ComponentModel; using System.Data; using System.Diagnostics; using System.Windows.Forms; using Erp.Adapters; using Erp.UI; using Ice.Lib; using Ice.Adapters; using Ice.Lib.Customization; using Ice.Lib.ExtendedProps; using Ice.Lib.Framework; using Ice.Lib.Searches; using Ice.UI.FormFunctions; using Ice.Proxy.Lib; using Ice.Core; using Erp.BO; using Ice.BO; public class Script { // ** Wizard Insert Location - Do Not Remove ‘Begin/End Wizard Added Module Level Variables’ Comments! ** // Begin Wizard Added Module Level Variables ** // End Wizard Added Module Level Variables ** // Add Custom Module Level Variables Here ** EpiUltraGrid myGrid; BOReaderImpl _boReader; public void InitializeCustomCode() { // ** Wizard Insert Location - Do not delete ‘Begin/End Wizard Added Variable Initialization’ lines ** // Begin Wizard Added Variable Initialization // End Wizard Added Variable Initialization // Begin Wizard Added Custom Method Calls // End Wizard Added Custom Method Calls myGrid = (EpiUltraGrid)csm.GetNativeControlReference(“87f88dc8-1b94-4324-ba83-583a2af5cbb9”); myGrid.DisplayLayout.Bands[0].Columns.Add(“JobReleased”,“Job Released”); myGrid.InitializeRow += new Infragistics.Win.UltraWinGrid.InitializeRowEventHandler(grdMatLst_InitializeRow); _boReader = WCFServiceSupport.CreateImpl<BOReaderImpl>((Ice.Core.Session)oTrans.Session, Epicor.ServiceModel.Channels.ImplBase<Ice.Contracts.BOReaderSvcContract>.UriPath); } private void grdMatLst_InitializeRow(object sender, Infragistics.Win.UltraWinGrid.InitializeRowEventArgs e) { if(!String.IsNullOrEmpty(e.Row.Cells[“JobNum”].Value.ToString())) { DataSet ds = _boReader.GetRows(“Erp:BO:JobEntry”,“JobNum = '” + e.Row.Cells[“JobNum”].Value.ToString() + “'”,“JobReleased”); if(ds.Tables[0].Rows.Count > 0 ) { e.Row.Cells[“JobReleased”].Value = ds.Tables[0].Rows[0][“JobReleased”].ToString(); } } } public void DestroyCustomCode() { // ** Wizard Insert Location - Do not delete ‘Begin/End Wizard Added Object Disposal’ lines ** // Begin Wizard Added Object Disposal // End Wizard Added Object Disposal // Begin Custom Code Disposal // End Custom Code Disposal } }

Many Many Thanks @danbedwards
your code is working great, it slow the UI abit but this is acceptable compare to what we achieved, now i can use this ‘superduper’ code method technique to Add, link, and display any value on the Database to any Epicor Custom Tracker, really appreciate your support.

@ckrusen,
Thanks for your note, but @danbedwards already helped me to find these assy DLL files.

[A.Baeisa (Al)]

@danbedwards

if(!String.IsNullOrEmpty(e.Row.Cells[“JobNum”].Value.ToString())) { DataSet ds = _boReader.GetRows(“Erp:BO:JobEntry”,“JobNum = '” + e.Row.Cells[“JobNum”].Value.ToString() + “'”,“JobReleased”); if(ds.Tables[0].Rows.Count > 0 ) { e.Row.Cells[“JobReleased”].Value = ds.Tables[0].Rows[0][“JobReleased”].ToString(); } }

Hi Dan,
i hope that you are ok, i am trying to apply this code to add a field (OrderRel.NeedByDate) to the Demand Custom Grid in Job Manager, the new issue in this case is passing three parameters not one i.e. OrderNum, OrderLine, and OrderRel, also could you please shed some light on GetByID LINQ structure here, as i menstioned before i have started teach myself C# in the past 6 months, and i am doing OK so far, so if you or any one on this great Forum know useful websites/documents/training material describing using Database C#.Net commands, i will be very appreciated to your advice,

[A.Baeisa (Al)]

Hi all
@hkeric.wci,
could any one help on this code issue ???
i am trying to apply this code to add a field (OrderRel.NeedByDate) to the Demand Custom Grid in Job Manager, the new issue in this case is passing three parameters not one i.e. OrderNum, OrderLine, and OrderRel, also could you please shed some light on GetByID LINQ structure here, as i menstioned before i have started teach myself C# in the past 6 months, and i am doing OK so far, so if you or any one on this great Forum know useful websites/documents/training material describing using Database C#.Net commands, i will be very appreciated to your advice,

[cbastijanic (Chris)]

I tried this code and it is giving me a null reference exception. Help.

[A.Baeisa (Al)]

it is an old post Chris, this issue has been resolved in many ways, check this post mate

Add UD fields from other BO in grid

@Christian_Pouchoulen, this is very smart mate , really out of the box solution using one of the grid built-in field, intercept its value at grid display and replace it by ours using BPM class. i believe this will always be the easiest solution to apply unless that all grid fields need to be displayed, i really appreciate sharing this great idea my friend.

[cbastijanic (Chris)]

OK, not getting the exception anymore but i can’t get this code to work
if (!string.IsNullOrEmpty(resource))
{
DataSet ds = _boReader.GetRows(“Erp:BO:Resource”, “ResourceID=’” + resource + “’”, “Description”);
if(ds.Tables[0].Rows.Count > 0)
{
row.Cells[“ResouceDesc”].Value = ds.Tables[0].Rows[0][“Description”];
}

I am trying to do this on the work queue.

[cbastijanic (Chris)]

Got this to work. It helps a lot if I spell thing correctly.

[A.Baeisa (Al)]

i prefer to use a dynamic query over BoReader, it is faster and easier, plenty of examples on the forum, this is one

Dynamic Query Grid Results

I have a Dynamic Query which populates in a grid based upon a partial search of the PO Num. When the proper PO Num Row gets highlighted I want a text box to fill with a column entry from the grid. I have created an After Row Activate Event on the Grid. I am unsure of the proper code to get the text box to equal a column from the grid. //Order - PONum Leave private void txtOrderHed_PONum_Leave(object sender, System.EventArgs args) { gridPOResults.Visible = true; //Show PO Grid numOrderDtl_…

[hkeric.wci (Haso Keric)]

I use Dynamic Query when I need special data or when there exists possibility that a BSA will ask for different filtering.

I prefix the BAQs I use in Code with CODE-MyBAQIntent like CODE-GetLateAPInvoices.

I use BO Reader when its a flat file such as just get me a field from Customer, UDCode, Company Setting… Less dependencies.

[A.Baeisa (Al)]

many thanks @hkeric.wci
BO Reader (Get Rows) is very slow in the example i tried and posted, may be i need to optimise my code a bit

[tkoch (Theodore Koch)]

The nice thing about BOReader is that you can specify in the third arg/param what columns you want returned which in theory should speed it up

[A.Baeisa (Al)]

Hi @tkoch
could you share a full example here please, mine on this thread was selected for one column as a parameter and was very slow compared to the Dynamic query
